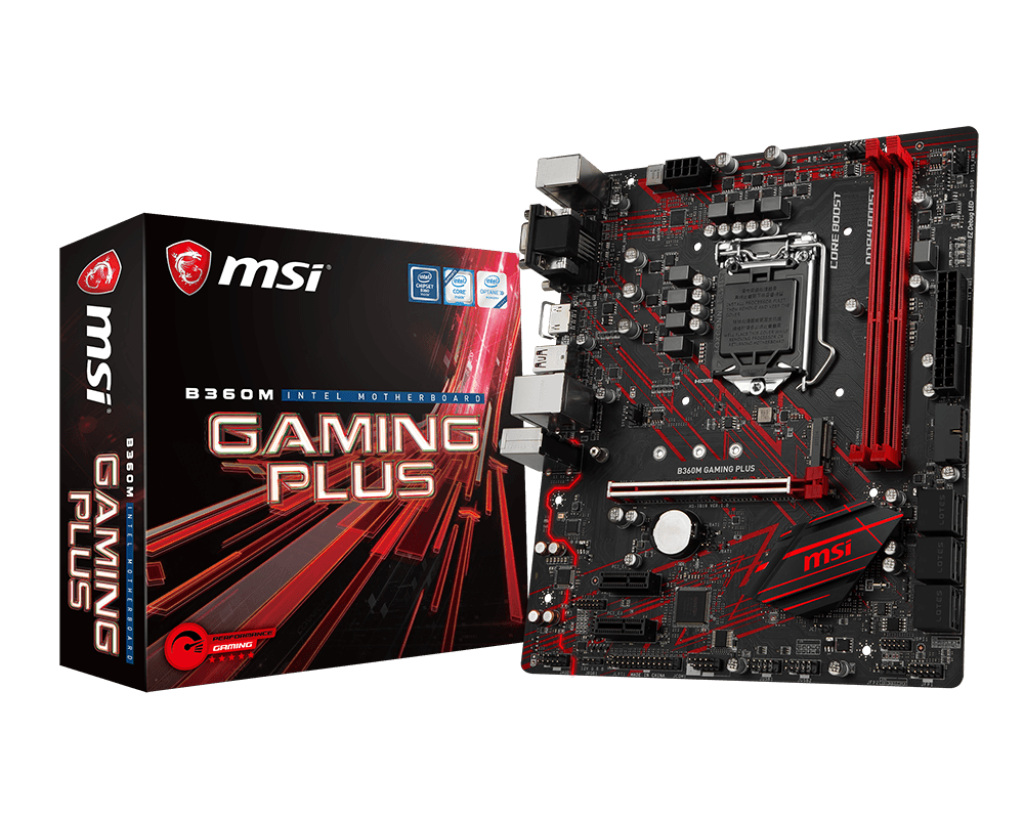

| Tên gọi | MSI B360M GAMING PLUS |
| CPU hỗ trợ | Intel® Socket 1151 for 8th Generation Core™ Processors |
| Chipset / Socket | Intel® B360 |
| Bộ nhớ (RAM) | – Dual Channel DDR4 Memory Technology – 2 x DDR4 memory slots, support up to 64GB – Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB* – Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Công nghệ đa GPU | • Không hỗ trợ |
| Khe cắm mở rộng | • 1 x PCI Express 3.0 x16 Slots • 2 x PCI Express 3.0 x1 Slots |
| LAN / Wireless | • Intel I219-V Gigabit LAN controller |
| Âm thanh | • Realtek® ALC887 Codec |
| Cổng kết nối (Internal) | • 1 x 24-pin ATX main power connector • 1 x 8-pin ATX 12V power connector • 6 x SATA 6Gb/s connectors • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) • 1 x 4-pin CPU fan connector • 2 x 4-pin system fan connectors • 1 x Front panel audio connector • 1 x RGB LED connector • 1 x Parallel port connector • 1 x Serial port connector • 2 x Front panel connectors • 1 x TPM module connector • 1 x Chassis Intrusion connector • 1 x Clear CMOS jumper |
| Cổng kết nối (Back Panel) | • PS/2 Combo Port • VGA • LAN Port • HD Audio Connectors • USB 2.0 Port • DVI-D • HDMI • USB 3.1 Gen1 Type A + C • USB 3.1 Gen1 |
