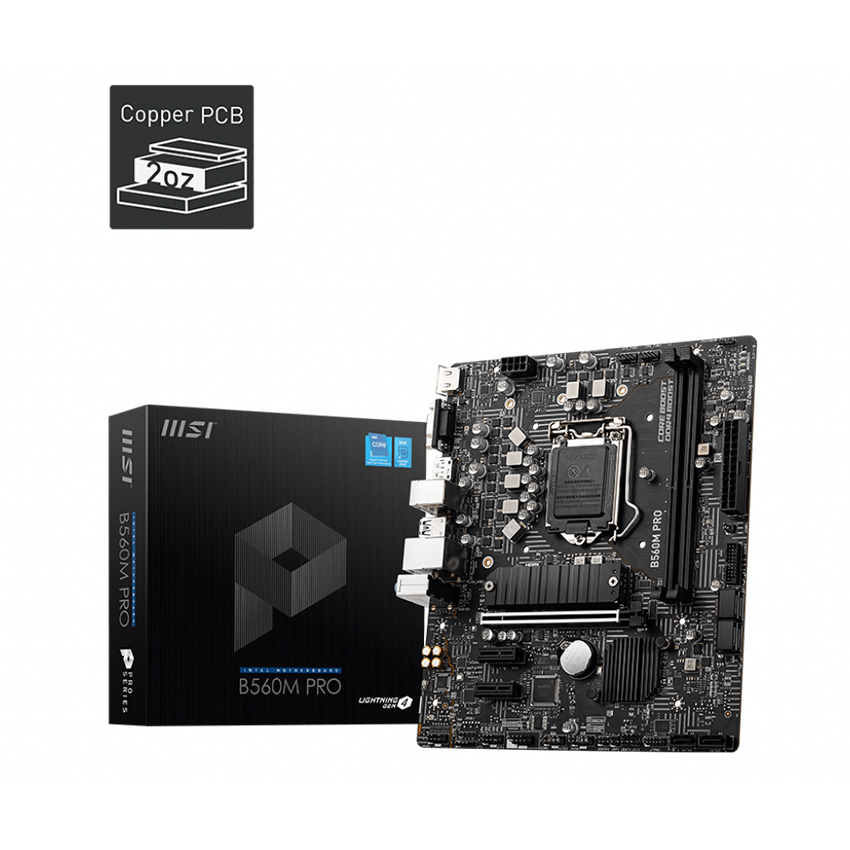

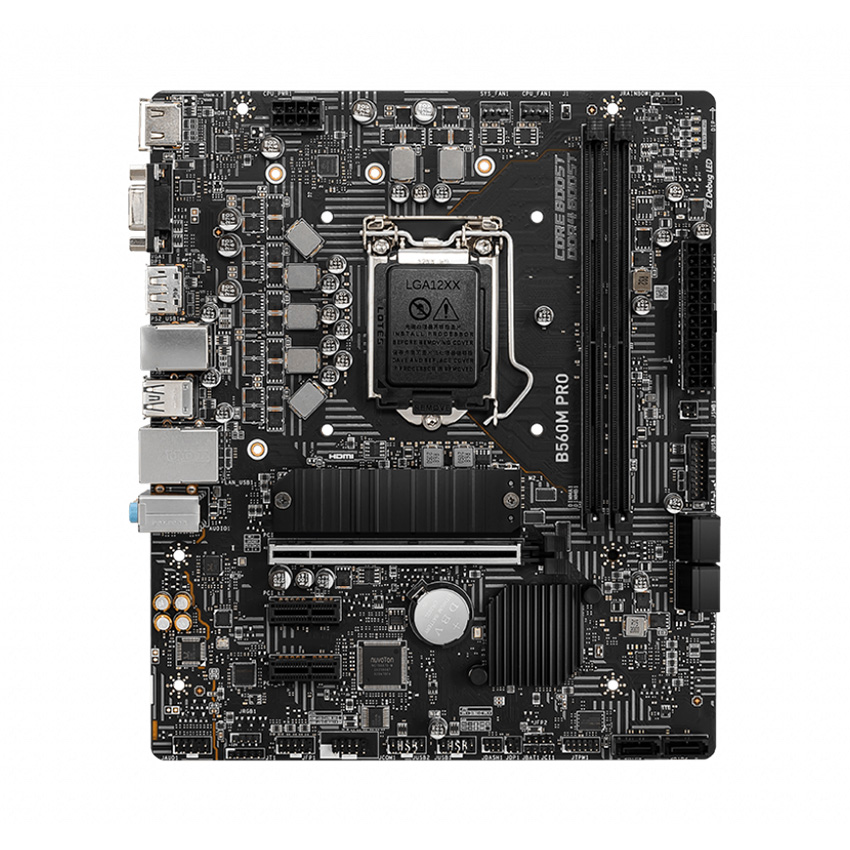

Mainboard MSI B560M PRO

Hướng Dẫn Sử Dụng Máy Tính : chú ý tránh xa nguồn nước và môi trường nhiệt độ cao. Bạn nên bảo quản, cất gọn máy trong những khu vực thoáng mát, tránh ánh nắng mặt trời trực tiếp, tránh bụi bặm, tránh bị dính nước

sản xuất và phân phối bởi MSI :https://vi.wikipedia.org/wiki/Micro-Star_International

Thông số kỹ thuật chi tiết Mainboard MSI B560M PRO

Sản phẩm	Bo mạch chủ
Tên Hãng	MSI
Model	B560M PRO
CPU hỗ trợ	Intel
Chipset	B560
RAM hỗ trợ	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots (From B560 chipset)
Ổ cứng hỗ trợ	6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M) Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices
Cổng kết nối (Internal)	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector

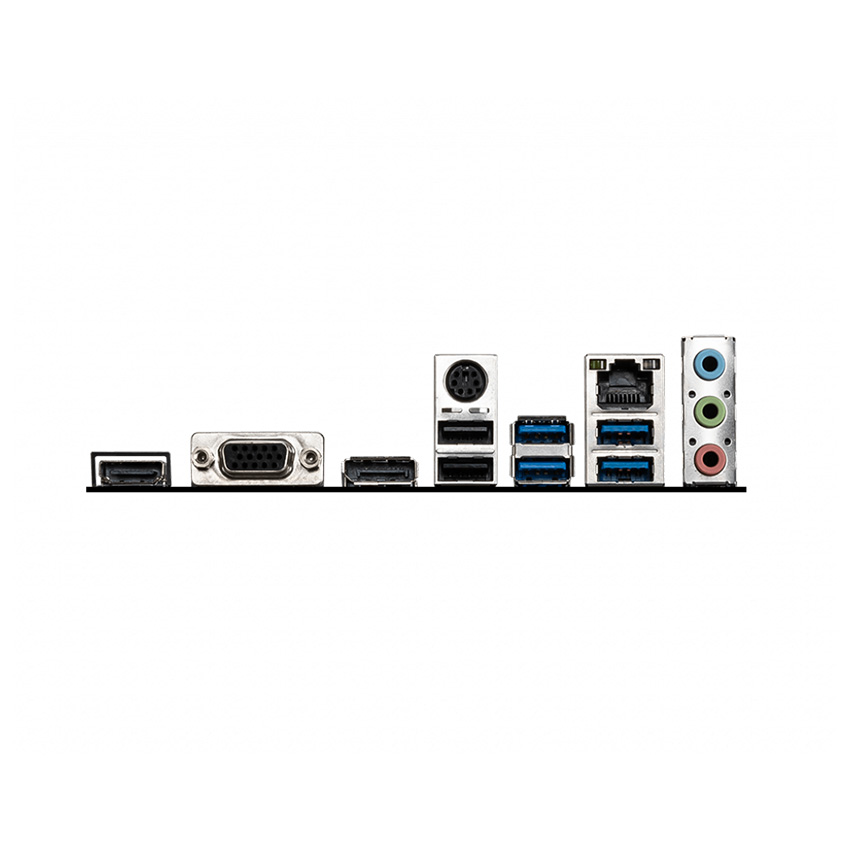

Cổng kết nối (Back Panel)	1 x HDMI 1 x DP 1 x PS2 1 x LAN port 1 x Audio connector 2 x USB 2.0 1 x VGA 4 x USB 3.2 Gen 1 5Gbps Type A
LAN / Wireless	1x Realtek® 8125B 2.5Gbps LAN controller
Kích cỡ	mATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)
