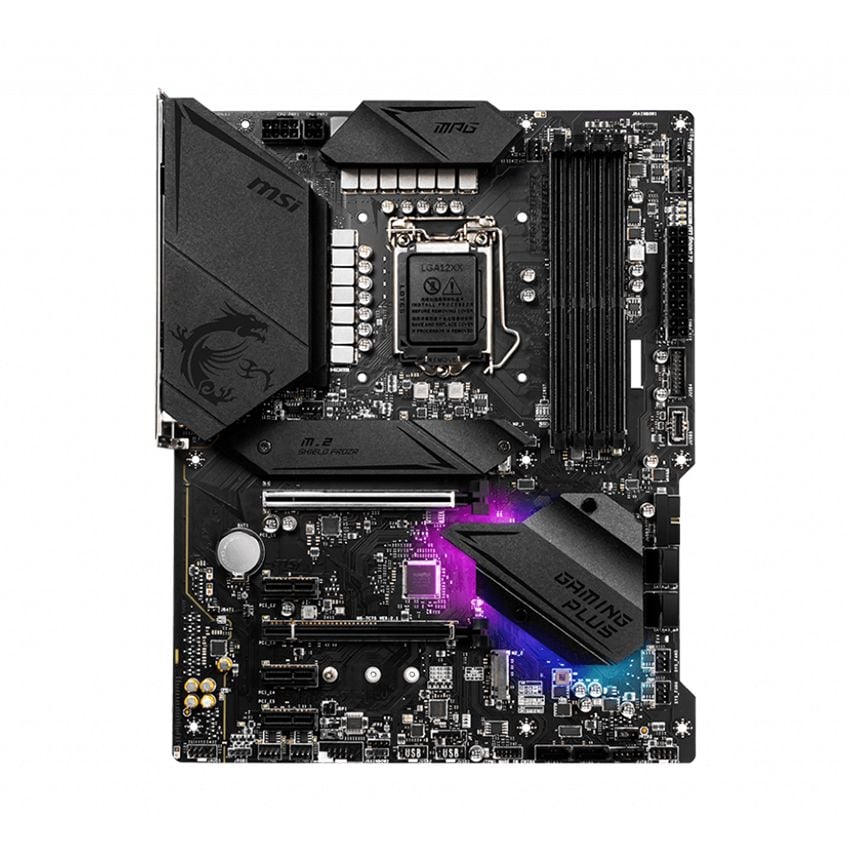

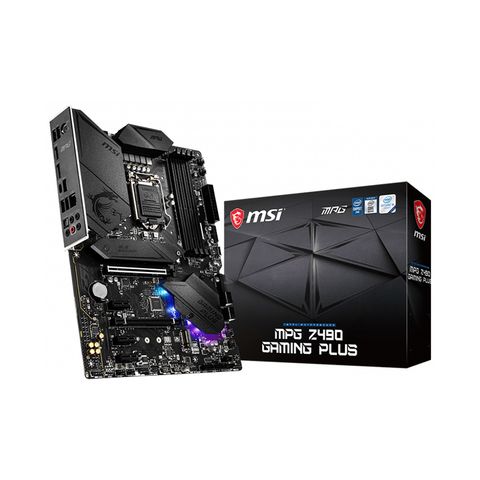

Đặc điểm nổi bật của Mainboard MSI MPG Z490 GAMING PLUS (Intel Z490, Socket 1200, ATX, 4 khe RAM DDR4)
THÔNG SỐ KỸ THUẬT
Sản phẩm | Mainboard - Bo mạch chủ | |
Tên Hãng | MSI | |
Model | MPG Z490 GAMING PLUS | |
CPU hỗ trợ | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket | |
Chipset | Intel® Z490 Chipset | |
RAM hỗ trợ | 4 x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) | |
Khe cắm mở rộng | 1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 3x PCIe x1 slots (from PCH) | |
Cổng xuất hình ( ONBOARD GRAPHICS ) | 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz | |
Hỗ trợ đa card màn hình | Supports 2-Way AMD® CrossFire™ Technology | |
Lưu trữ | 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. | |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices | |
USB | 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
Âm Thanh | Realtek® ALC1200-VD1 Codec 7.1-Channel High Definition Audio Supports S/PDIF output | |
LAN / Wireless / Bluetooth | 1x Realtek® RTL8125B-CG 2.5G LAN Controller | |
Cổng kết nối ( I/O bên trong) | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector Thunderbolt card need support RTD3 | |
Cổng kết nối ( I/O Phía sau) | PS/2 Combo Port USB 3.2 Gen 2 10Gbps (Type-A) LAN Port HD Audio Connectors USB 2.0 Ports HDMI Port DisplayPort USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF OUT | |
Kích cỡ | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm | |
