Hướng Dẫn Sử Dụng Máy Tính : chú ý tránh xa nguồn nước và môi trường nhiệt độ cao. Bạn nên bảo quản, cất gọn máy trong những khu vực thoáng mát, tránh ánh nắng mặt trời trực tiếp, tránh bụi bặm, tránh bị dính nước
sản xuất và phân phối bởi MSI :https://vi.wikipedia.org/wiki/Micro-Star_International

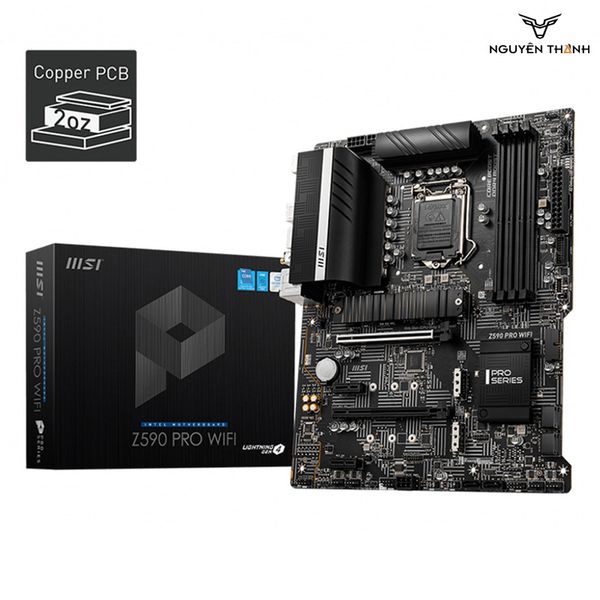

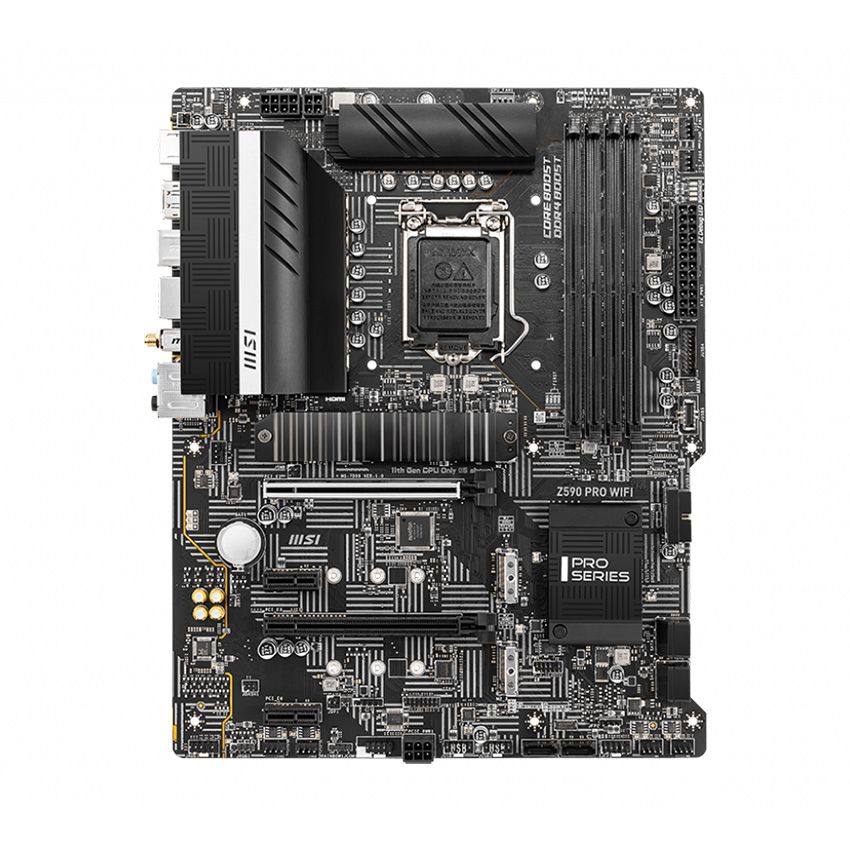

Thông số kỹ thuật chi tiết Mainboard MSI Z590 PRO WIFI (Intel Z590, Socket 1200, ATX, 4 khe Ram DDR4)
Tên Hãng | MSI |
Model | Z590 PRO WIFI |
CPU hỗ trợ | Intel |
Chipset | Z590 |
RAM hỗ trợ | 4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
Khe cắm mở rộng | 2x PCIe x16 slots Support x16/ x4 PCI_E1 (from CPU) Supports up to PCIe 4.0 for 11th Gen Intel® CPU Supports up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 (from Z590 chipset) Supports up to PCIe 3.0 2x PCIe 3.0 x1 slots (from Z590 chipset) |
Ổ cứng hỗ trợ | 6x SATA 6Gb/s ports (from Z590 chipset) 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21, M2_32 slots (from Z590 chipset) Support up to PCIe 3.0x4 Support up to SATA 6Gb/s Support 2242/ 2260/ 2280 storage devices |
Cổng kết nối (Internal) | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin ATX PCIe power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) |

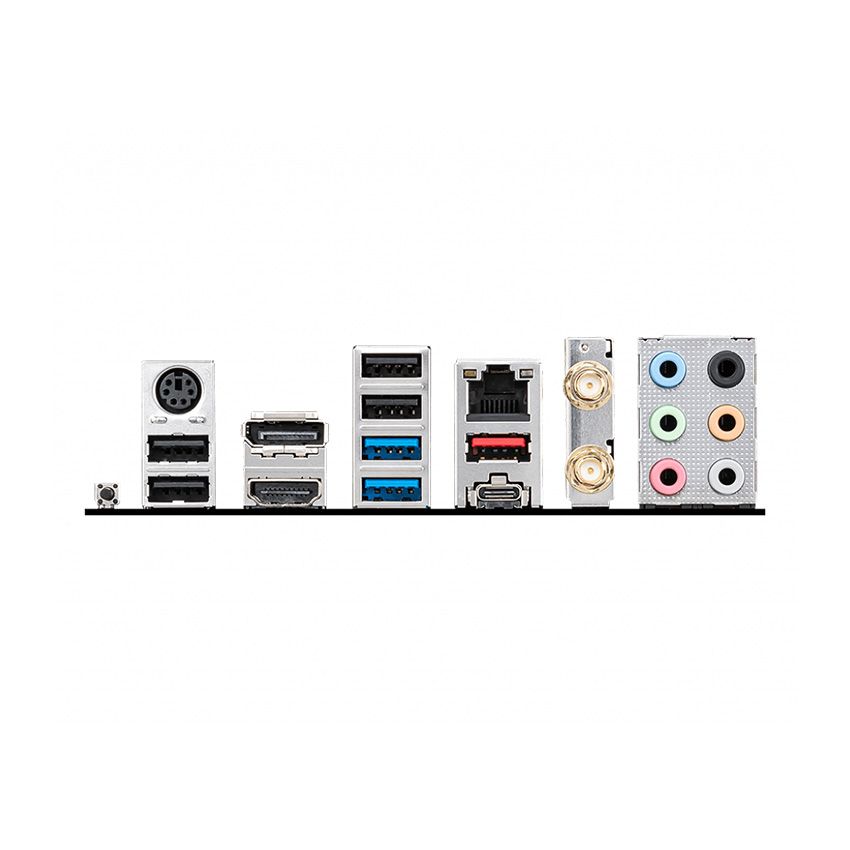

Cổng kết nối (Back Panel) | 1 x HDMI 1 x LAN port 1 x Audio connector 1 x wifi/bluetooth 4 x USB 2.0 1 x DP 1 x PS2 2 x USB 3.2 Gen 1 5Gbps Type A 1 x USB 3.2 Gen 2 10Gbps Type A 1 x USB 3.2 gen 2x2 20Gbps Type c |
LAN / Wireless | 1x Intel® I225V 2.5Gbps LAN controller |
Kích cỡ | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
